GREASE DISPENSER

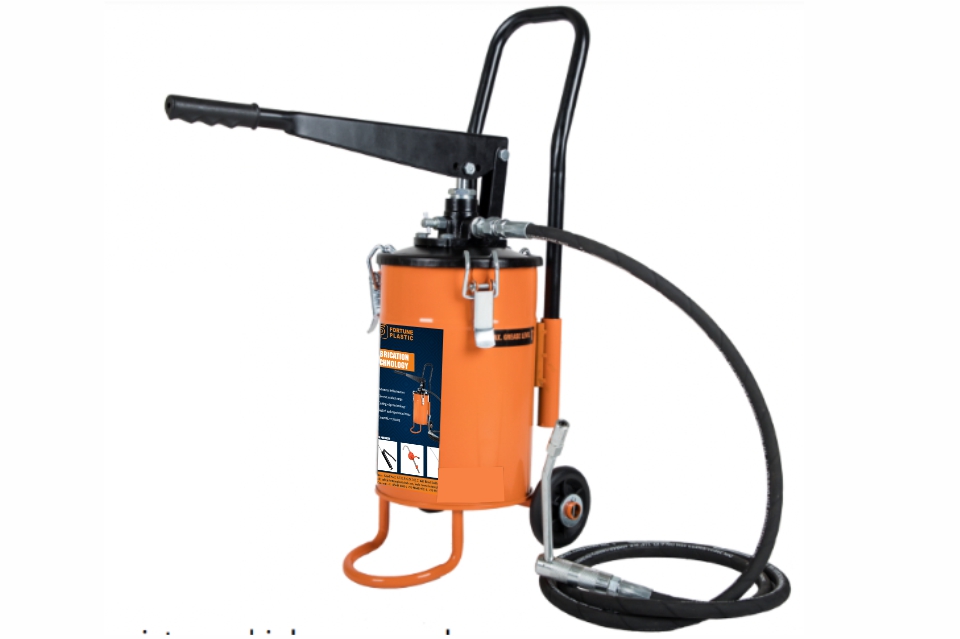

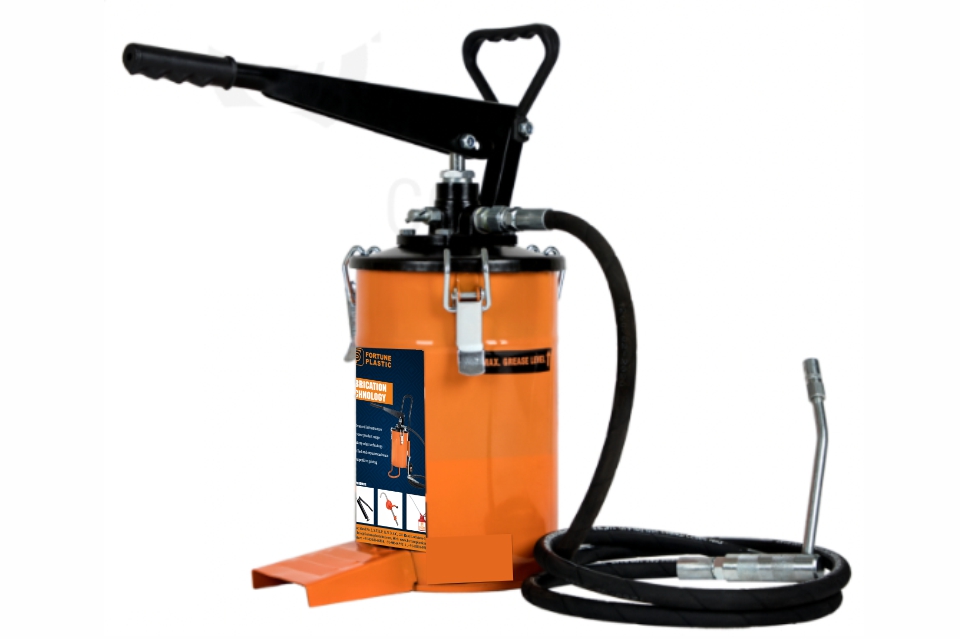

● High-Pressure Hand Operated Portable Grease Pump

● Quick and easy openable cover.

● Lever-operated pump mounted on the cover of the drum.

● Pump has a steel construction cast head and solid steel pump chamber.

● Supplied with 3/8” x 2.2-meter wire braided, oil resistance high-pressure hose.

● High grease discharge per stroke makes it 4 times more efficient than most lever grease guns.

● Working pressure up to 5000 psi.

● Volume grease pump designed for quick & effortless greasing in applications requiring a large volume of lubrication every day, for use with agricultural equipment, excavators & other earth-moving equipment, and in automotive applications.

Wetted Components
Steel, Aluminium, Brass & Nitrile Rubber.

Instructions
Always use oil-mixed semi-solid dust-free grease.
Do not replace skilled grease from the floor into the containers.
The pressure hose and unit should always be kept clean.
Release pressure when not in use.

Recommended Use
With NLGI 1, 2 & 3 greases.

●  High-pressure portable grease pump for quick, effortless greasing in everyday lubrication, such as greasing of excavators & other earth-moving equipment, agricultural equipment, automotive, etc.

●  Industrial strength. Built and tested for the toughest environments.

●  Economical, pump is operated by a single person & uses low-cost bulk grease.

●  Designed with all moving parts submerged in the same grease which needs to be pumped, thereby staying lubricated at all times.

●  Can be operated by hand when under low machinery.

Wetted Components
Nitrile Rubber, Steel.

Recommended Use
With NLGI 1, 2 & 3 Greases.

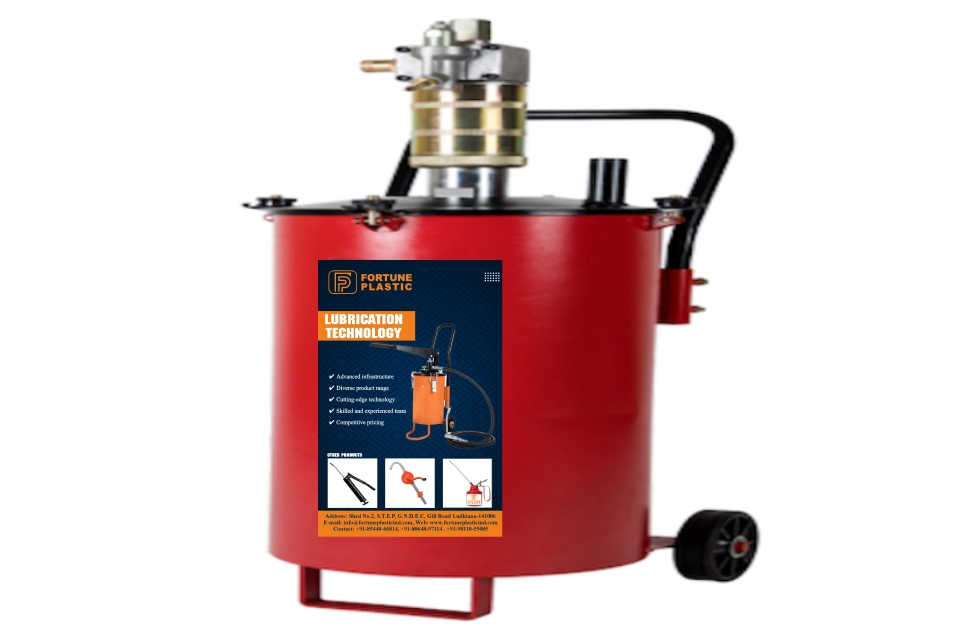

●   Designed to work in tough conditions – these are ideal for industry workshops, farms, construction, or as part of the mobile grease system.

●   Supplied complete with built-in steel drum, pull handle and wheels, drum cover, rubber-lined follower plate, 7ft (84”) of high-pressure grease hose & grease connector.

Flow Rate: 1.10 Kg./min. (2.42 lbs/min.)
Working Pressure: 10 Bar (150 psi)
Maximum Outlet Pressure: 500 Bar (7500 psi)

Wetted Components
Aluminium, Steel, Brass, Polyurethane & Nitrile Rubber.

Recommended Use
With light & self-collapsing grease up to NLGI 2.
